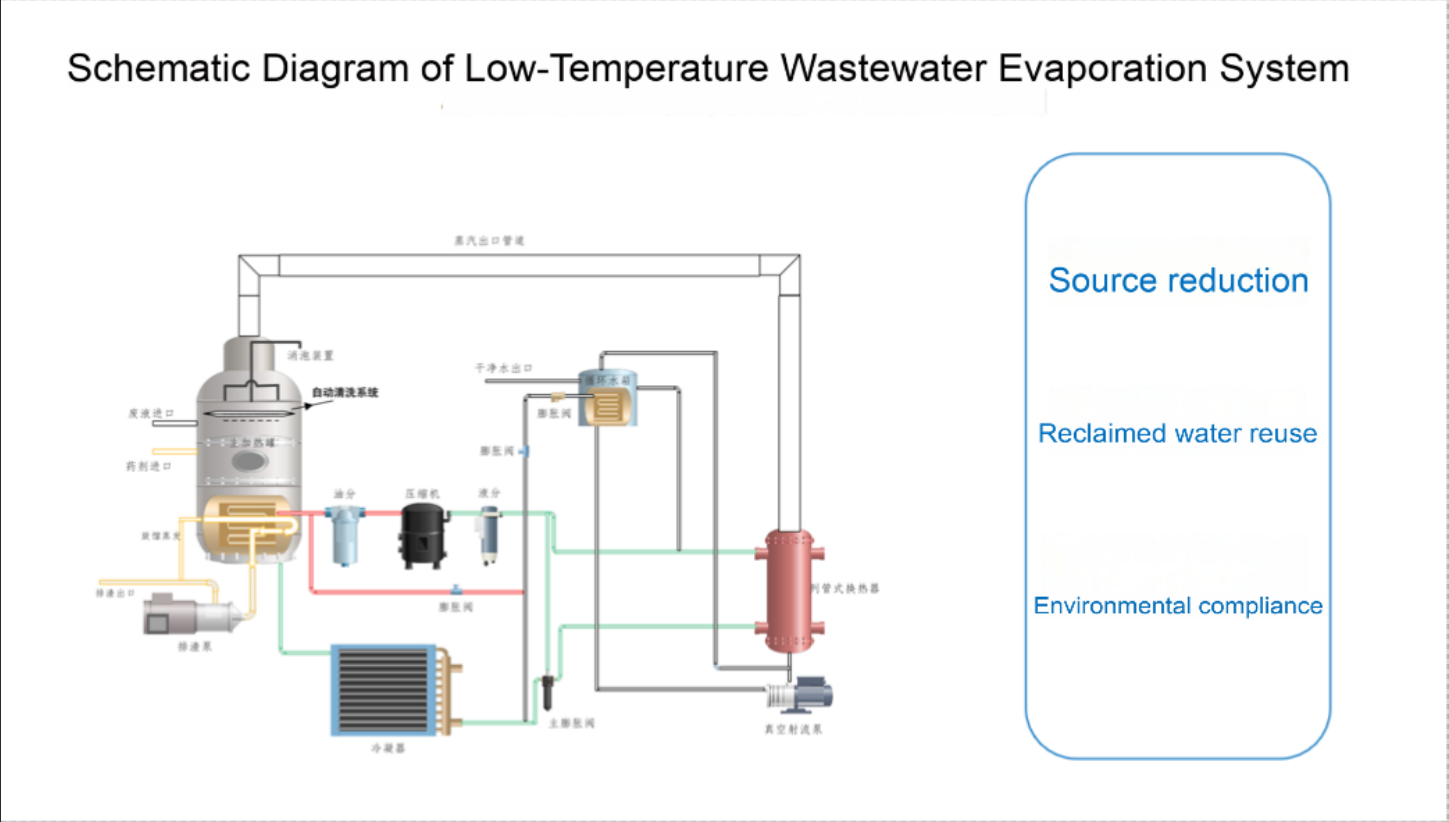

(1) The BSD-HP series employs a vacuum evaporation system utilising heat pumps with fully automated control.

(2) Evaporation temperature is maintained at approximately 37°C.

(3) Energy sources comprise electricity and compressed air.

(4) The evaporator is constructed from SS AISI 316L stainless steel.

(5) The evaporator heating element features an immersion-type annular heat exchanger.

(6) The compressor functions both heating and cooling simultaneously, maximising energy efficiency.

(7) Features an independently developed IoT-enabled intelligent remote monitoring system.

(8) The evaporation chamber incorporates an automated cleaning system, intelligently controlled by programming.

(9) Includes an automated defoamer dosing system.

Optional: Components in contact with liquids may be fabricated from special corrosion-resistant materials (SAF2507, SANICRO28 or titanium alloy, primarily for wastewater treatment involving high chloride or fluoride concentrations). For highly corrosive fluids, components in contact with liquids utilise special corrosion-resistant metallic materials supplemented with a nano-coating on the metal surface to enhance corrosion resistance.
